20a 2u 19-inch Rack Pdu with Universal Sockets, Pdu16-avc

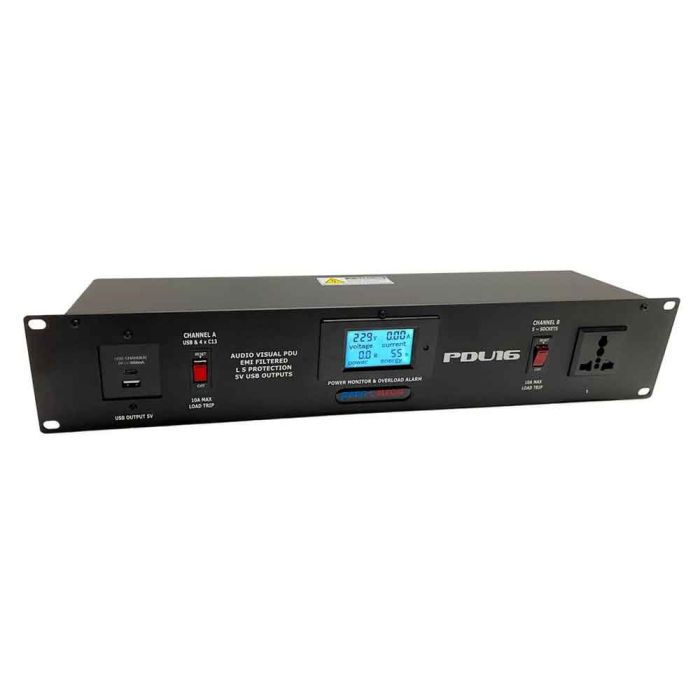

Penn Elcom 20A Rack Mount PDU Universal Sockets PDU16-AVC

2U 20 Amp Rack Mount Power Distribution Unit PDU with Overload Protection & Power Monitoring (USB/USB-C)

Designed for versatile hook-up distribution of AC Power, the 2U High Horizon Mounting Unit was tailor-made for Audio Visual and Multimedia applications.

Main Input

• Neutrik 20A powerCON with 2nd Order EMI Filter and GDT/VDR protection circuit to protect against sudden power surges and lightning strikes.

Circuit A:

• Output A: 4 Way IEC C13 Outlet Strip with max combined load of 10A - 1 USB and 1 USB-C 5V 1.8A on 1 combined charger module
• Protection: Illuminated Circuit Breaker 10A overload protection

Circuit B:

• Output: Six universal sockets that are usable with UK, US, European and Australian plugs, with maximum combined load 10A. (Schuko type plugs have a 2 pin connection only).
• Protection: Illuminated Circuit Breaker 10A overload projection.
• LCD Monitor: LCD Power Monitor that will display Current, Voltage, Power and Energy Levels.
• Earth Link: M4 Screw Terminal for Rack Grounding.
