20a Ac Pro Stage And Truss Mount Plug Board Pdu16-6uk
20A AC Pro Stage and Truss Mount Plug Board PDU16-6UK PDU16-6UK By Metalworx
Product Description
Metalworx 20A AC Pro Stage and Truss Mount Plug Board PDU16-6UK PDU16-6UK
20A AC Pro Stage and Truss Mount Plug Board
This power distribution board is built for professional event use, with a super tough steel case and high-spec components.

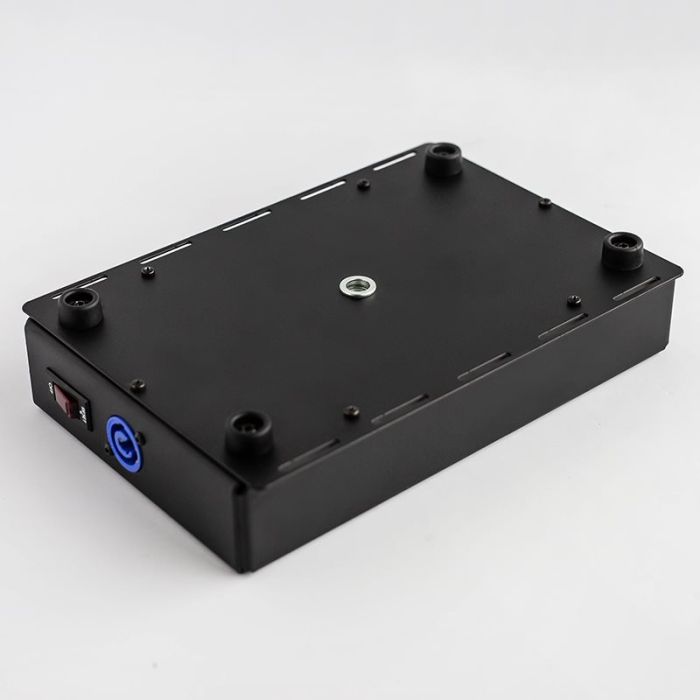

Designed for mounting, it comes with a rear M10 captive nut fixing for coupler attachment to truss and stage fixings. Also has side slots for velcro or cable ties to help secure the unit.

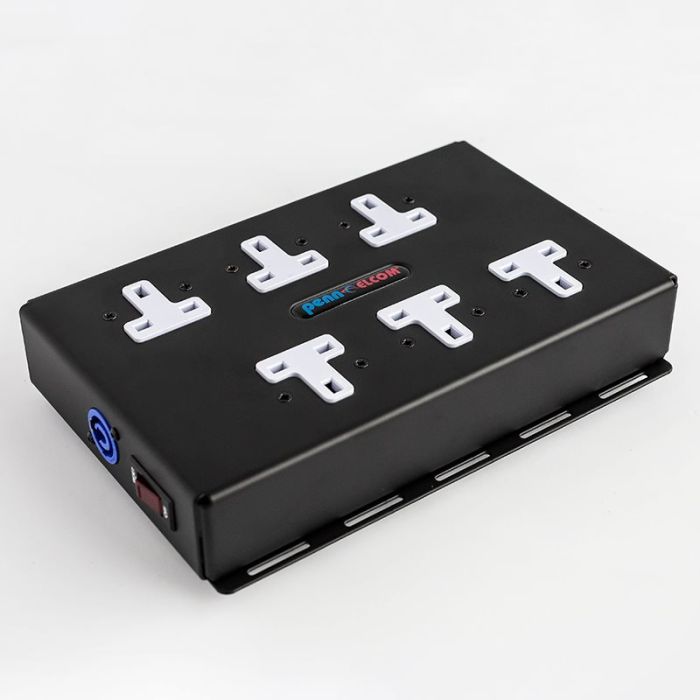

Unit provides 6 x 13A UK sockets and a Neutrik 20A PowerCON in and out link and a 16A illuminated thermal breaker for circuit protection.
Works great with this half coupler with M10 recess
Safety notice: when using the LINK output the combined load of a Daisy Chain must not exceed 20A
Technical Specification:
- Voltage: 250V max
- Frequency: 50/60HZ
- Max Combined Load: Current 20A
- Dimensions: 44mm x 166mm x 243mm / 1.73in x 6.53in x 9.56in
- Weight: 1.7kg / 3.74lb
Additional Information
- SKU
- FAV-PDU16-6UK
- Brand
- Metalworx
- Barcode
- 840149900331
- Manufacturer Code
- PDU16-6UK
