1m Strip-to-driver Connector For 8mm Cob Strips Flsw8sml

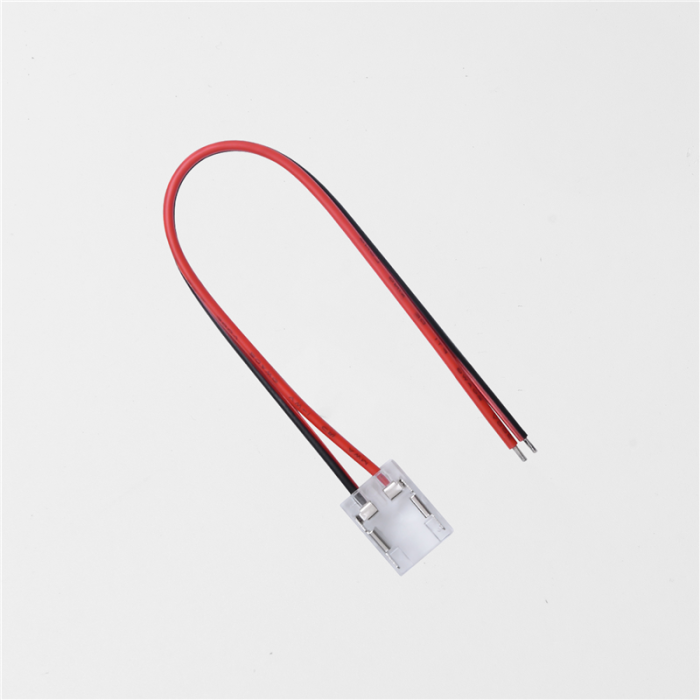

fossLED 1m strip-to-driver connector for 8mm COB strips FLSW8SML LEDFLCOBW8SML

FLSW8SML

The FossLED innovative Mini connectors are compatible with all single colour 8mm strips and designed to fit into even the slimmest aluminium extrusions.
These New Feed connectors are used to create a new run; simply insert the strip into the corresponding terminals and crimp with pliers to pierce PCB components for a secure finish. Do note that once crimped down, they are not designed to be re-used.
Long nose or small nose pliers will work. Does not require too much pressure applied.
Pre-Flexed with a 1m lead (Red & Black)

Use with the 5W COB FossLED strips in 2700K Warm White or 4000K Cool/Neutral White. Can feed a full 5m reel.

Product benefits
Reduced installation time
Can be connected to the front of the module or at cutting points
Clear housing, allows light to shine thru it avoiding dark ends

Product Specification
Compatible Strips: ECO / COB
Strip PCB Width: 8mm
Voltage Range (DC): 3
24V
Max Load Rating (@ 24V): 96W
Max Current Rating: 4A
Wire Gauge: 2 x 0.52sqmm
Wire Length: 1000mm
Dimensions (connector): L15.6 x W9.6 x H3.3mm
Product weight: 16 g
Reusable: No
IP Rating: IP20

Logistical data
Commodity code: 8536699099
