1m Kit 31mm Wide Deep Recessed Profile Ledal33

Comus 1m Kit 31mm wide Deep Recessed Profile LEDAL33 LEDAL33

New aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL33A1M - 1M anodized aluminium extrusion

LEDAL33DC1M - 1M diffuse cover

LEDAL33EC - 1x White End Cap without hole

LEDAL33ECH -1x White End Cap with hole for cable entry

Features:

+ Aluminium anodized track for LED Flex or LED modules

+ Low weight

+ Easy and fast assembly and connection

+ Suitable for LED strips not wider than 16 mm

Advantages:

+ Excellent heat sink providing long life and reliability for LED

+ Easy installation of the LED Flex or modules

+ 1 year Warranty.

Application area:

+ Edge lighting;

+ Strip lighting;

+ Cove lighting;

+ Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL33B - Black version

LEDAL33W - White version

LEDAL33M2 - 2M anodized version (grey)

Suitable for the Flex strips not over 30mm or 3 x 8 mm or 3 x 10mm.

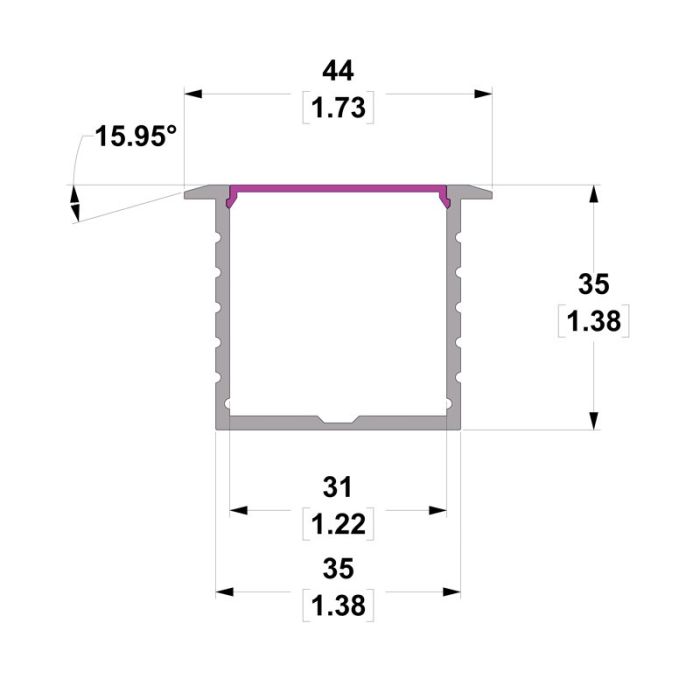

Height: 35 mm

Length: 1000 mm

Material: 6063 anodized aluminium

Warranty: 1 year

Base Width (External): 35 mm

Base Width (Internal): 31 mm

Top Width: 44 mm

Base thickness: 1 mm

Cover material: Polycarbonate

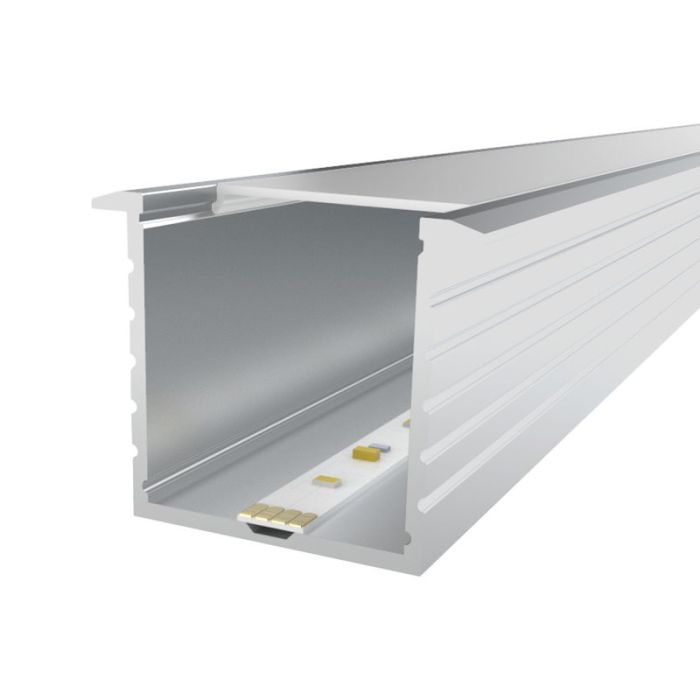

LED shown in images for illustration purposes and is not included in profile
