1m Kit 20.2mm Wide Corner Aluminium Profile Ledal23

Comus 1m kit 20.2mm Wide Corner Aluminium Profile LEDAL23 LEDAL23

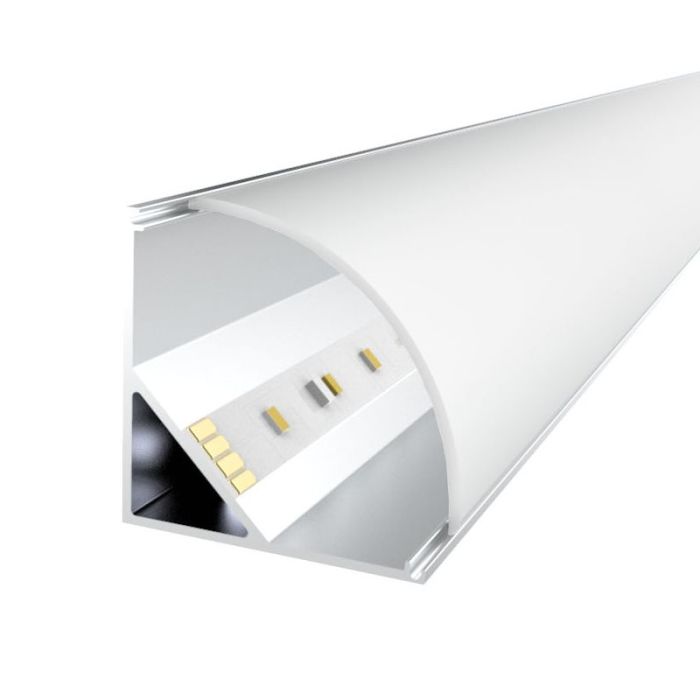

1M Kit LEDAL 23 - 20.2mm Wide Corner Aluminium Profile

Aluminium track from Penn Elcom LED to be used with OSRAM LINEARLight Flex or other LED modules.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability

The tracks can be shortened to the desired length

Included in the KIT:

LEDAL23A1M - 1M anodized aluminium extrusion
LEDAL23MC1M - 1M milky cover
LEDAL23EC - End Cap without hole
LEDAL23ECH - End Cap with hole for cable entry
LEDAL23MB - 2 x mounting brackets

Features:

+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 20 mm

Advantages:

+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty

Application area:

+ Edge lighting
+ Strip lighting
+ Cove lighting
+ Anywhere LED Flex or an LED module needs extra support

Other options available:

LEDAL23B - 1M Black version
LEDAL23W - 1M White version
LEDAL23M2 - 2M anodized version (grey)

Suitable for the Flex strips not over 20 mm

Height: 30 mm
Length: 1000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Interior): 20.2 mm
Base thickness: 1.1 mm
Cover material: PC

LED shown in images for illustration purposes and is not included in profile
