1m Kit 18.1mm Wide Corner Profile Ledal37

Penn Elcom 1m Kit 18.1mm wide Corner Profile LEDAL37 LEDAL37

Corner surface mounted aluminium extrusion suitable for LED strips not wider than 12mm. Recommended solution for 12mm low wattage strips.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL37A1M - 1M anodized aluminium extrusion
LEDAL37MC1M - 1M opal cover
LEDAL37EC - 1x Grey End Cap without hole
LEDAL37ECH -1x Grey End Cap with hole for cable entry
LEDAL37MB - 2x Metallic Mounting Brackets

Features:

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 12 mm

Advantages:

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:

Edge lighting;
Strip lighting;
Cove lighting;
Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL37B - Black version
LEDAL37W - White version
LEDAL37M2 - 2M anodized version (grey)
LEDAL37M3 - 3M anodized version (grey)

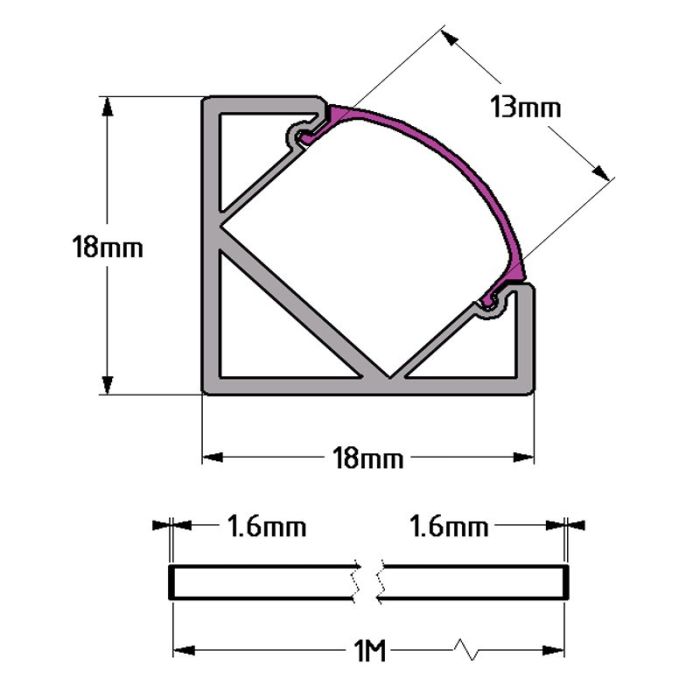

Specifications:

Height: 18.1 mm
Length: 1000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (External): 18.1 mm
Width (Internal): 12 mm
Width (Opening): mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Clip in

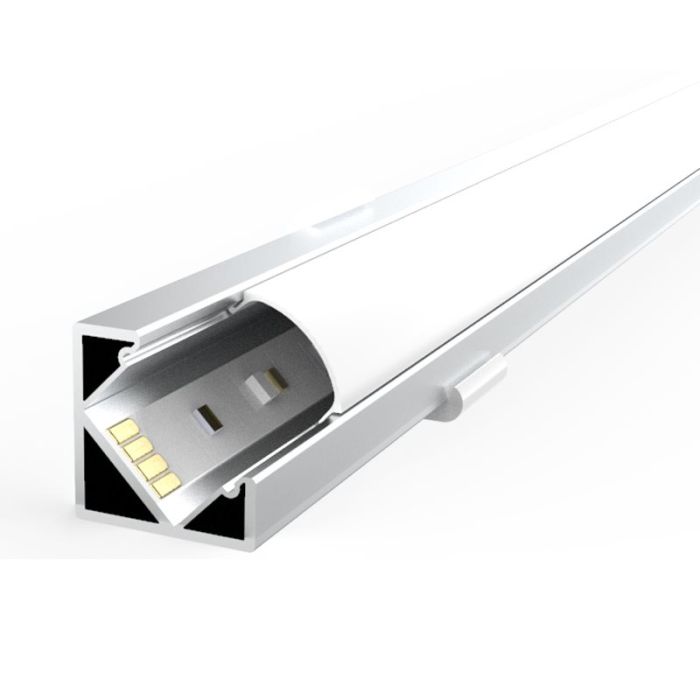

LED shown in images for illustration purposes and is not included in profile
