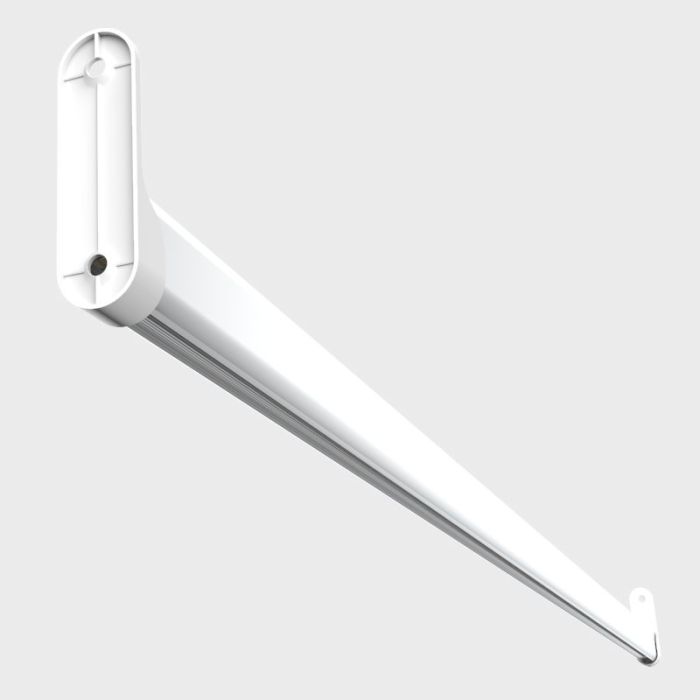

1m Kit 15.2mm Wide Wardrobe Profile Ledal38

Penn Elcom 1m Kit 15.2mm wide Wardrobe Profile LEDAL38 LEDAL38

Aluminium extrusion suitable for LED strips not wider than 6mm. Ideal for wardrobe lighting. When using lengths above 1M the additional use of metallic hangers is recommended for extra support.
The mettalic side brackets offer two functions: fixing and sealing of the profile giving it an overall nice finish.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL38A1M - 1M anodized aluminium extrusion
LEDAL38DC1M - 1M diffuse cover
LEDAL38MB - 2x Metallic Side Mounting Brackets

Features:

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 6 mm
M3 wooden screws required for use with the metallic side brackets and hangers (not included)

Advantages:

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:

Wardrobe lighting;
Suspended lighting;
Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL38B - Black version
LEDAL38W - White version
LEDAL38M2 - 2M anodized version (grey)

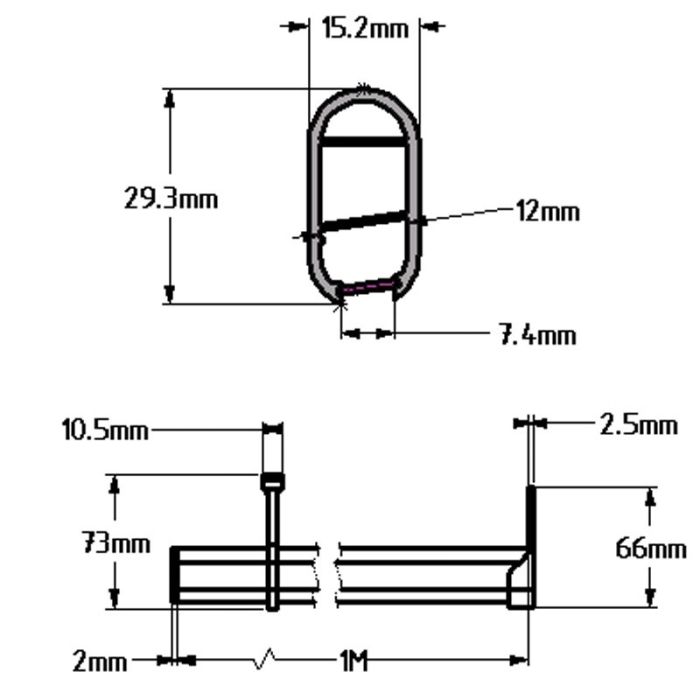

Specifications:

Height: 29.46 mm
Length: 1000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (External): 15.2 mm
Width (Internal): 12.16 mm
Width (Opening): 7.5 mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Slide in
