1m Kit 12mm Wide Very Slim Profile Ledal34

Penn Elcom 1m Kit 12mm wide Very Slim LED Profile LEDAL34

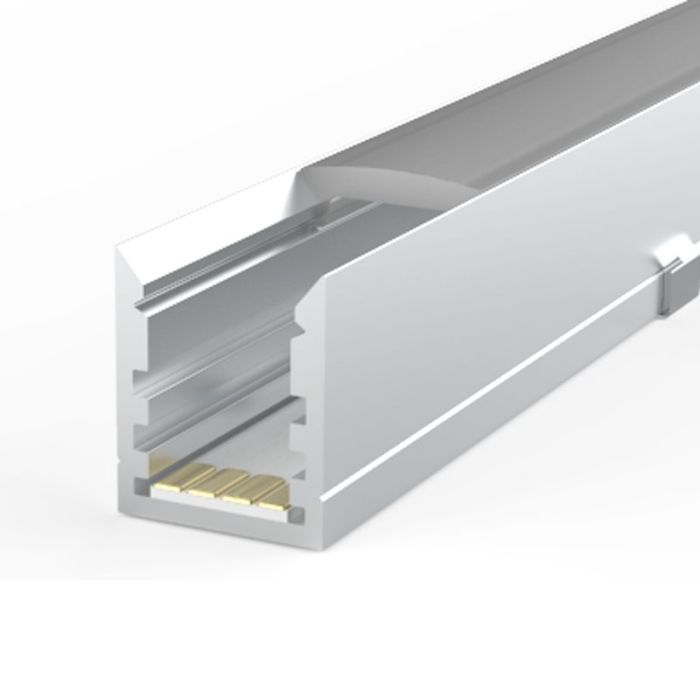

Very slim and discrete aluminium extrusion suitable for LED strips not wider than 8mm. Where no profile has gone before!

The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

• LEDAL34A1M - 1M anodized aluminium extrusion
• LEDAL34DC1M - 1M diffuse cover
• LEDAL34EC - 1x Grey End Cap without hole
• LEDAL34ECH -1x Grey End Cap with hole for cable entry
• LEDAL34MB - 2x Metallic Mounting Brackets

Features:

• Aluminium anodized track for LED Flex or LED modules
• Low weight
• Easy and fast assembly and connection
• Suitable for LED strips not wider than 8 mm
• Ideal for tinny spaces

Advantages:

• Excellent heat sink providing long life and reliability for LED
• Easy installation of the LED Flex or modules
• 1 year Warranty.

Application area:

• Edge lighting;
• Strip lighting;
• Cove lighting;
• Anywhere LED Flex or an LED module needs extra support.

Other options available:

• LEDAL34B - 1M Black version
• LEDAL34W - 1M White version
• LEDAL34M2 - 2M anodized version (grey)
• LEDAL34M3 - 3M anodized version (grey)

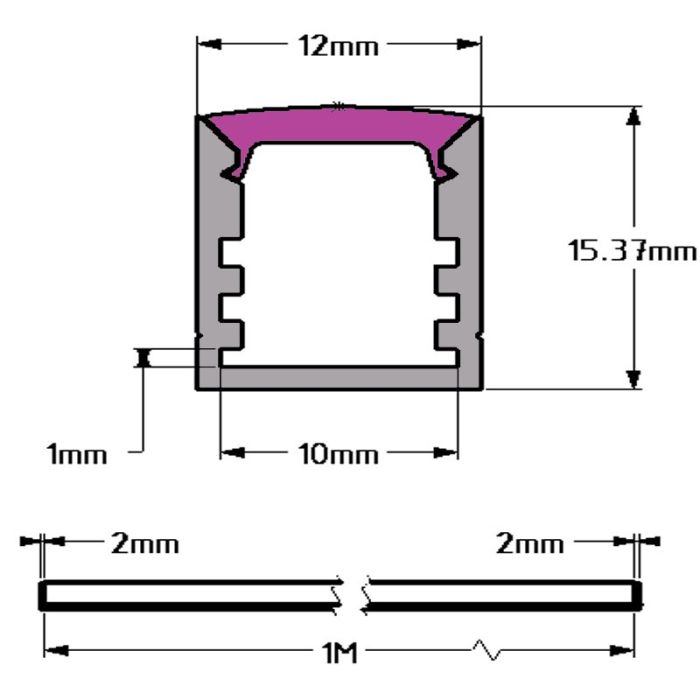

Specifications:

• Height: 15 mm
• Length: 1000 mm
• Material: 6063-T5 anodized aluminium
• Warranty: 1 year
• Width (External): 12 mm
• Width (Internal): 10.1 mm
• Width (Opening): 8 mm
• Base thickness: 1.1 mm
• Cover material: Polycarbonate
• Cover assembly method: Clip in

LED shown in images for illustration purposes and is not included in profile
