1m Black Ledal03 Kit For 10mm Corner Aluminium Profile Ledal03b

Penn Elcom 1M Black LEDAL03 KIT for 10mm Corner Aluminium Profile LEDAL03B LEDAL03B

Aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:
LEDAL03A1M - 1M BLACK anodized aluminium extrusion
LEDAL03MC1M - 1M milky white cover
LEDAL03EC1M- WHITE End Cap without hole
LEDAL03ECH - WHITE End Cap with hole for cable entry
LEDAL03MB - 2x mounting brackets

Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 10 mm

Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty

Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support

Other options/accessories available:
LEDAL03 - 1M grey anodized aluminium KIT
LEDAL03M2 - 2M grey anodized aluminium KIT
LEDAL03M2B - 2M black KIT
LEDAL03W - 1M white KIT
LEDAL03M2W - 2M white KIT

Suitable for the Flex strips not over 10 mm
Height: 16 mm
Length: 1000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Internal): 10 mm
Base thickness: 0.8 mm
Cover material: PC
Aluminium base RAL9004: Signal black

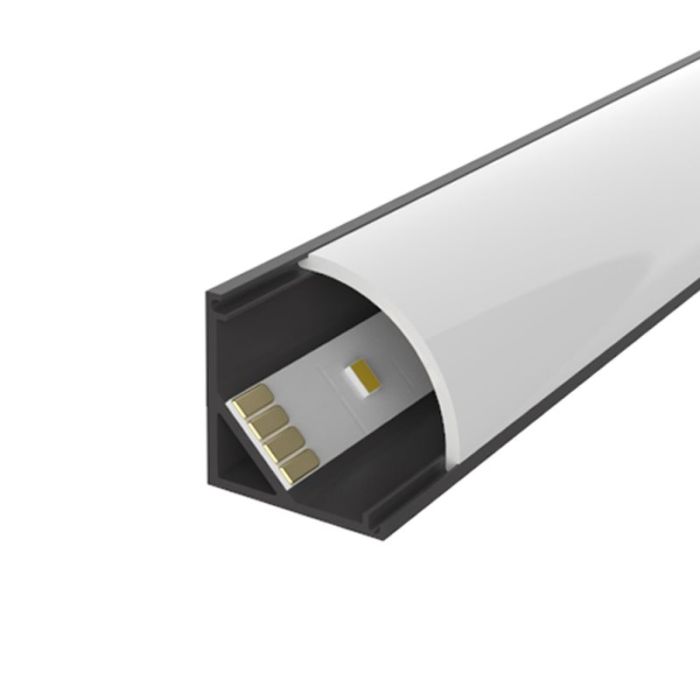

LED shown in images for illustration purposes and is not included in profile
