1m 15x15mm Plaster-in Profile For Straight Runs Ledal43

Penn Elcom 1m 15x15mm Plaster-in profile for straight runs LEDAL43 LEDAL43

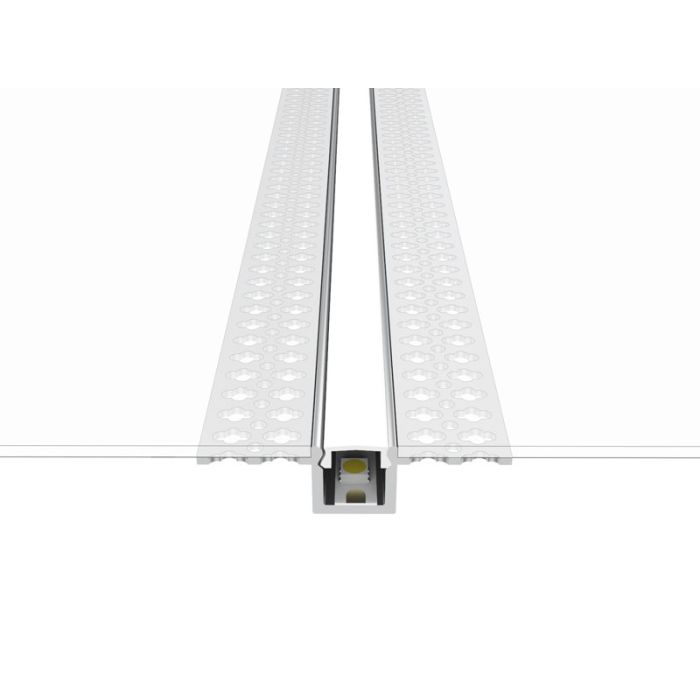

Plaster-in aluminium extrusion for recessing light strip into a plasterboard wall or ceiling. Suitable for LED strips not wider than 11mm. For straight runs of light!
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install: Fix/screw aluminium profile into your plasterboard, plaster the edges, install your led strips inside the profile and finally push-in the milky cover.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Looking to get a dotless (no hot spots) lighting effect? Use together with the 5W COB FossLED strips in 2700K Warm White or 4000K Cool/Neutral White
Need a more cost effective solution? Try the Osram 8.6W Basic Flex in 2700K Warm White or 3000K Warm White (slightly cooler).

Included in the KIT:

LEDAL43A1M - 1M anodized aluminium extrusion
LEDAL43MC1M - 1M milky white cover
LEDAL43EC - 1x White End Cap without hole
LEDAL43EC - 1x White End Cap with hole for cable entry

Other options available:

LEDAL43M2 - 2M anodized version (grey)
LEDAL43M3 - 3M anodized version (grey)

Features:

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 11mm

Advantages:

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:

Plasterboard in kitchens;
Plasterboard in rooms;
Plasterboard in corridors;
Plasterboard in meeting rooms.

Specifications:

Height: 15 mm
Length: 1000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (Top with wings): 55.5 mm
Width (Base): 15.49 mm
Width (Internal): 11 mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Push in

LED shown in images for illustration purposes and is not included in profile
