Penn Elcom 16A Rack Mount PDU Universal Sockets PDU16-UN

2U 16 Amp AC Rack Mount PDU with Overload Protection & Power Monitoring

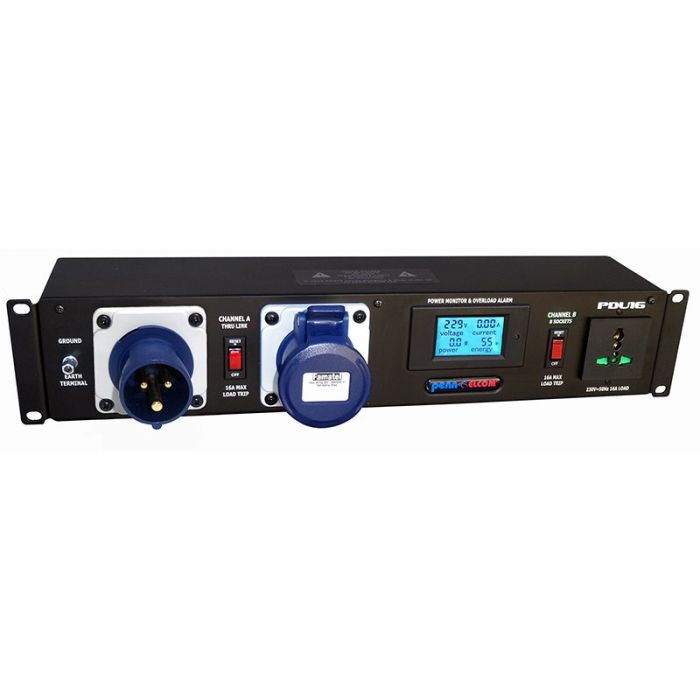

The Penn Elcom PDU16-UN is a 2U rack mountable 16A Power Distribution Unit designed to deliver reliable AC power distribution in multimedia, theatre, and touring environments. It features a C-FORM 240V 16A IP44 panel mount appliance inlet and outlet, providing robust connectivity. Circuit B offers 8 universal sockets compatible with UK, US, European, and Australian plugs, supporting a maximum combined load of 16A. Each circuit is safeguarded by illuminated 16A circuit breakers for overload protection. An integrated LCD power monitor displays real-time voltage, current, power, and energy levels, ensuring efficient power management. Additionally, an M4 screw terminal is provided for rack grounding, enhancing safety. With nominal voltage support ranging from 110V to 230V and a frequency range of 50/60Hz, the PDU16-UN is a versatile solution for diverse power distribution needs.

2U high Horizontal Mounting unit designed to provide versatile hook-up for the distribution of AC power within Multimedia Theatre & Touring rack applications.

Circuit A:

• Main Input - C-FORM 240V 16A IP44 Panel Mount Appliance Inlet
• Protection - Illuminated Circuit Breaker overload protection between dual 16A sockets
• Output - C-FORM 240V 16A IP44 Panel Mount Appliance Outlet

Circuit B:

• Output - 8 Universal sockets useable with plugs from the UK, US, Europe and Australia, with a Maximum Combined Load 16A (Schuko type plugs have a 2 pin connection only). For full universal plug application guide see Appendix A
• Protection - Illuminated Circuit Breaker 16A overload protection
• LCD Monitor - LCD Power Monitor giving Voltage, Current, Power and Energy Levels
• Earth Link - M4 Screw Terminal for Rack Grounding

Usage:

• Nominal Voltage: 110V-230V
• Usable Voltages: 110V-240V full range
• Frequency: 50/60HZ full range
• Max. A/C Output: Current 16A
• Case Size: 87 x 98 x 430mm (O.A.483mm) / 3.42in x 8.85in x 16.92in
• Weight: 2kg (4.4lbs)

All components used in this conform to current RoHS, CE & UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
